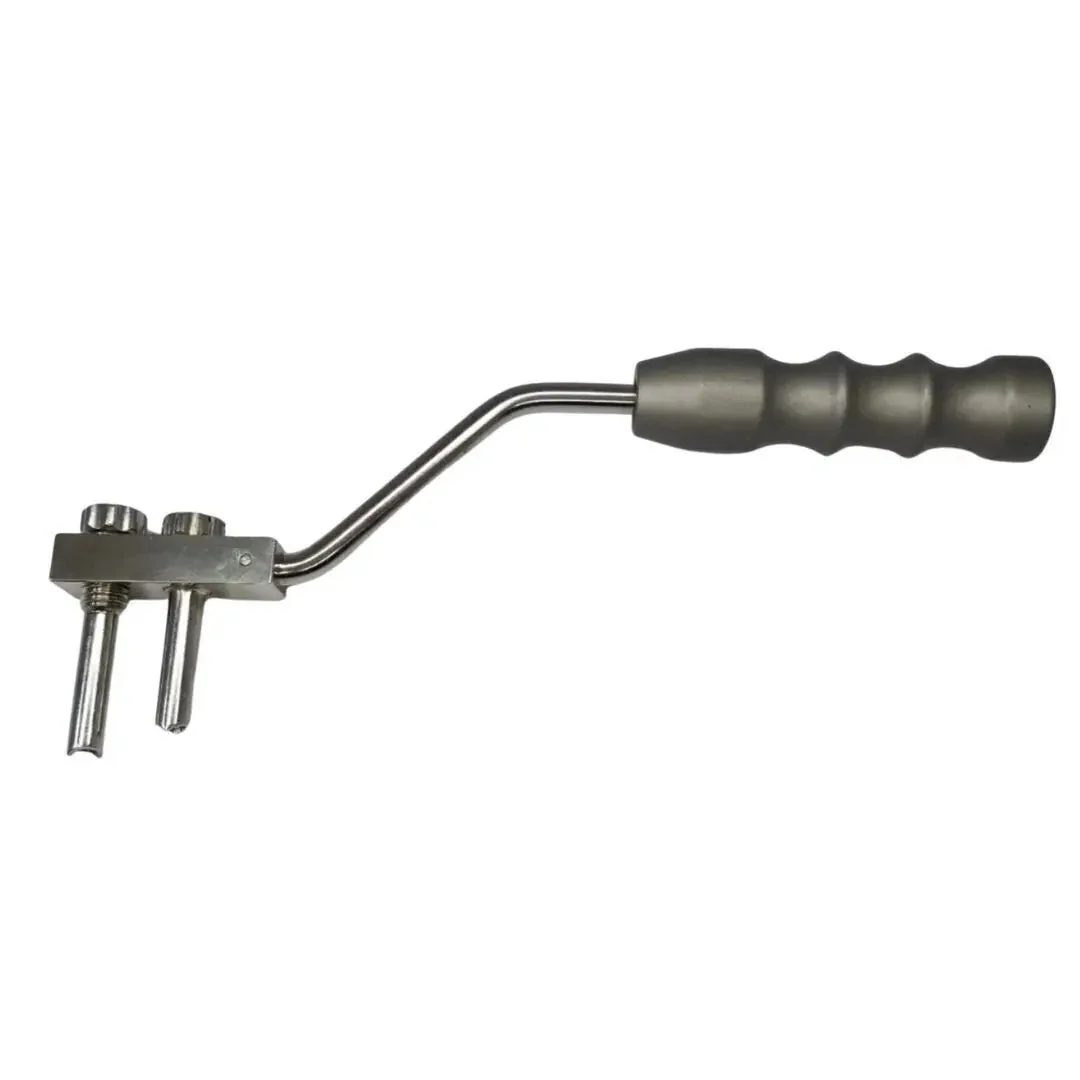

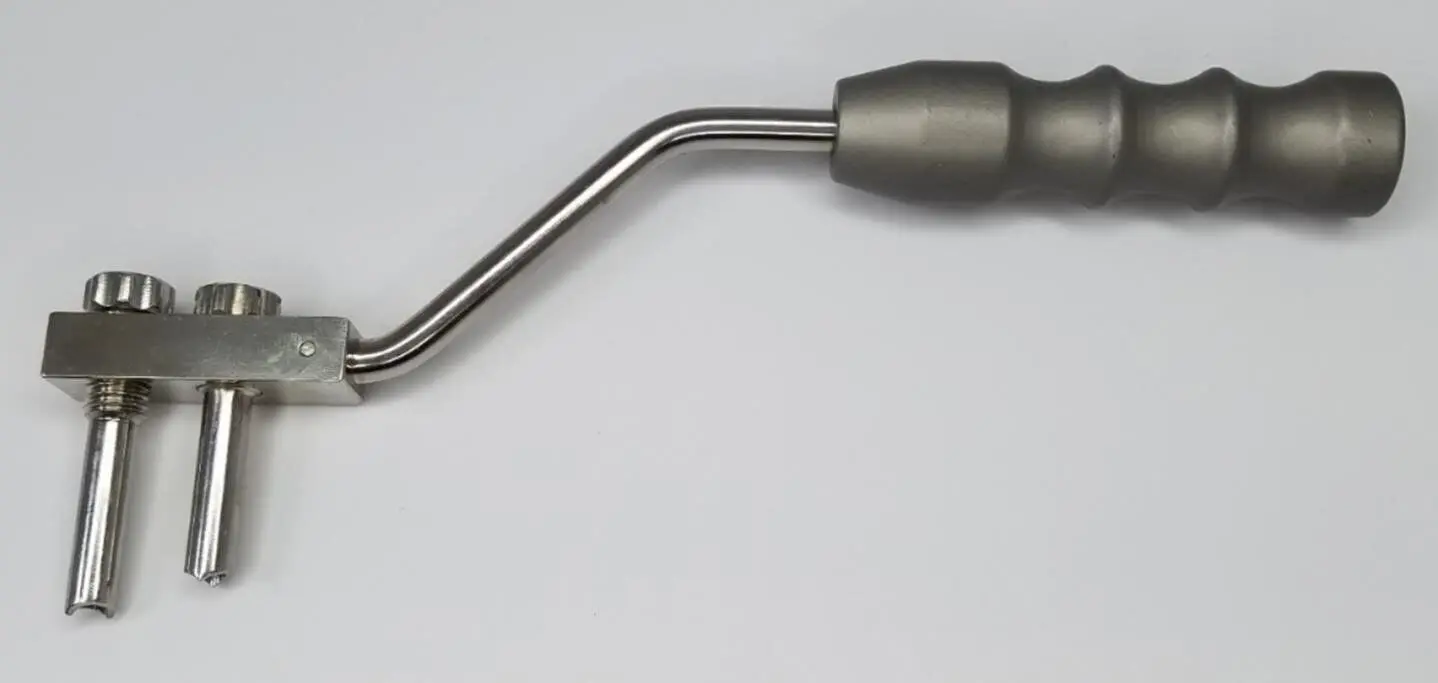

EBI Biomet 13520 DFS Orthopedic 4mm Drill Guide Template 7-1/2" Used
EBI Biomet DFS Orthopedic Drill Guide Template | Model 13520 | 4.0 mm Precision Guide Barrel | Dynamic Fixation System (DFS) Component | 7-1/2 Inch Total Nominal Length (19.1 cm) | Reusable Capital Trauma External Fixation Alignment Element | Pre-Owned Hospital Surgery Asset (1/EA)
The EBI Biomet 13520 is a professional-grade manual surgical instrument expertly engineered to align, stabilize, and guide 4.0 mm drill bits or fixation pins during external bone reduction and stabilization procedures. Part of the specialized EBI Biomet Dynamic Fixation System (DFS) trauma portfolio, this template serves as an exact positional guide to bridge external fixator blocks with cortical bone tunnels. Measuring 7-1/2 inches in total nominal length (19.1 cm structural footprint), the rigid layout maintains absolute parallel alignment between pin channels, preventing tracking errors, loose pin sleeves, or secondary bone micro-fractures under heavy structural framing loads.
Technical Specifications
-
Instrument Structural Typology: Dynamic Fixation System (DFS) Drilling Template
-
Integrated Guide Barrel Diameter: 4.0 mm nominal inner diameter clearance
-
Calibration Sleeve Alignment: Rigid fixed multi-hole inline trajectory spacing
-
Total Instrument Profile Length: 7-1/2 Inches nominal length (19.1 cm total structural footprint)
-

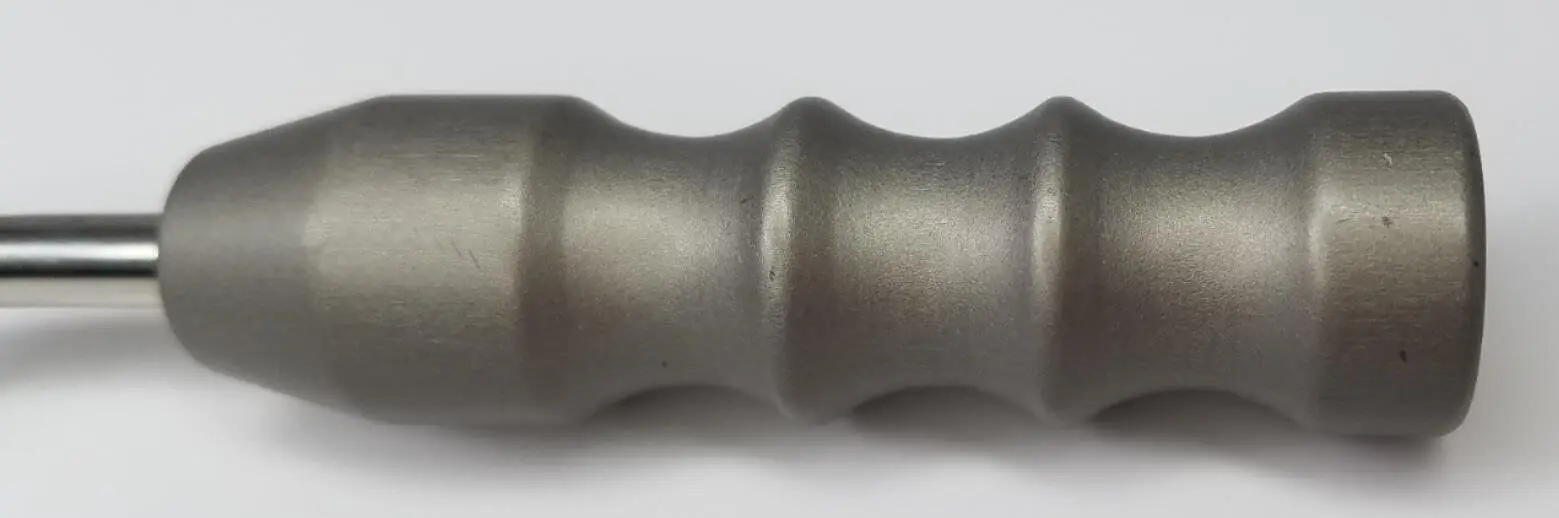

Handle Design Architecture: Flat, elongated manual extension plate with textured traction flats
-
Material Composition Matrix: Premium, passivated high-impact surgical stainless steel and anodized aluminum alloys
