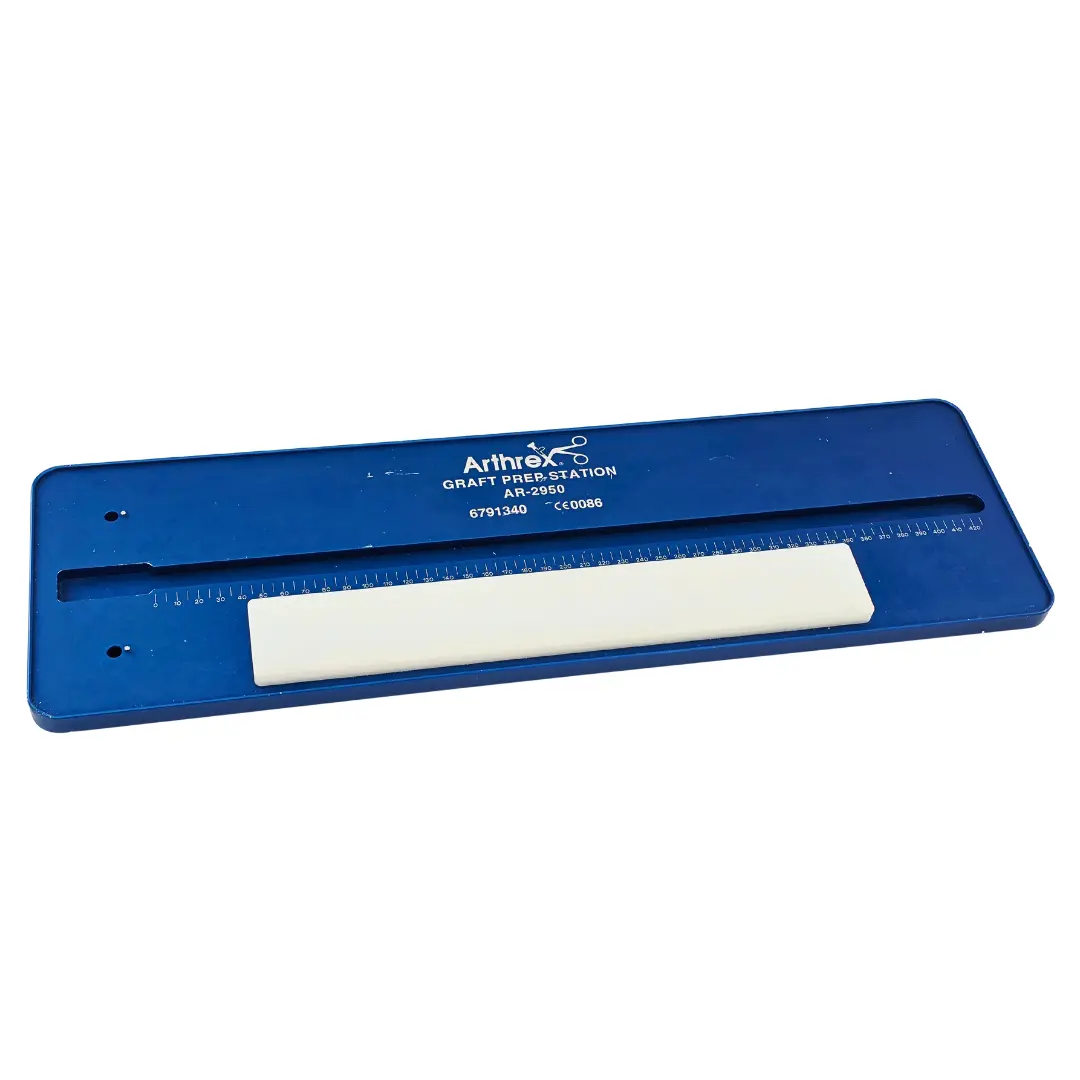

Arthrex AR-2950 GraftPro Graft Preparation Board Station for Orthopedic Surgery

Arthrex GraftPro Graft Preparation System | Model AR-2950 | Advanced Tendon and Ligament Sizing Workstation | Modular Intraoperative Graft Suture Tensioning Board | Reusable Manual Sports Medicine Reconstruction Infrastructure

The Arthrex AR-2950 GraftPro is a professional-grade surgical preparation workstation expertly engineered to facilitate the meticulous cleaning, preparation, suturing, and sizing of soft tissue and bone-tendon-bone (BTB) autografts or allografts. Primarily utilized during cruciate ligament (ACL/PCL) reconstructions, this modular system provides a rigid, ergonomic platform that securely holds tendons under controlled tension. The board features an integrated track system equipped with sliding sizing blocks, tensioning clamps, and adjustable suture anchors, allowing a single surgical technician or assistant to efficiently loop, whip-stitch, and measure graft diameters with anatomical precision.

Technical Specifications

• Equipment Typology: Modular Orthopedic Graft Preparation Station / Board

• Primary Surgical Application: ACL, PCL, and general tendon ligament graft preparation (Autografts/Allografts)

• System Component Modules: Sliding tensioning clamps, quick-connect tissue holders, sizing block holes, and a rigid track assembly

• Sizing Compatibility Track: Laser-etched scale measures graft diameters from 6.0 mm to 12.0 mm in 0.5 mm graduated increments

• Linear Length Scale: Integrated metric ruler ranging from 0 to 30 cm for precise graft length mapping

• Tensioning Mechanism: Adjustable slide-lock posts with manual spring-loaded tension dials for reproducible suture pulling force

• Overall Station Dimensions: 22.50" L x 7.50" W x 4.00" H (57.2 cm x 19.1 cm x 10.2 cm)

• Net System Weight: 6.2 lbs (2.81 kg balanced anti-slip benchtop configuration)

• Material Composition: High-tensile, passivated surgical-grade stainless steel and anodized aluminum with laser-etched markings
